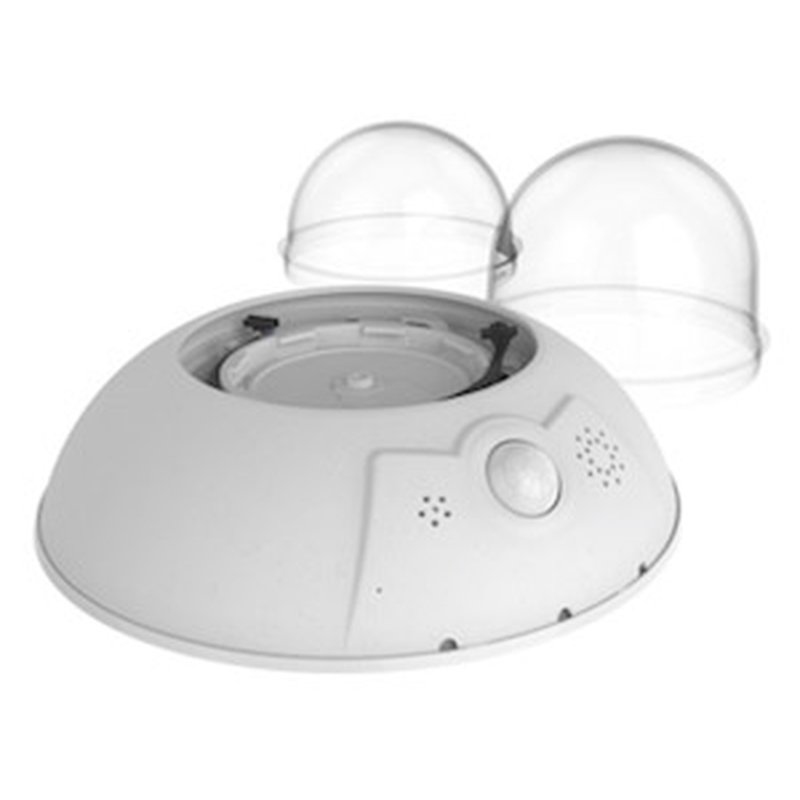

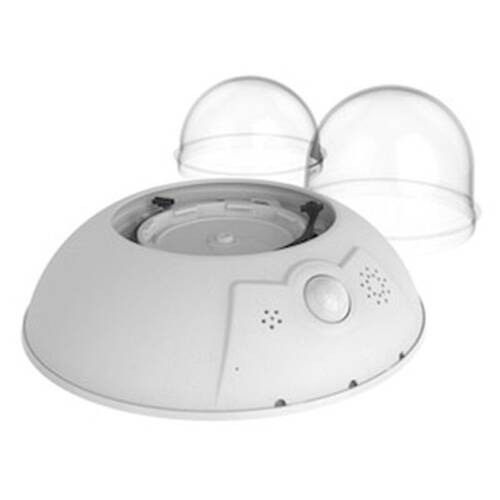

Mobotix MX-D16A

One Camera. Dual HiRes.

Two lenses, two HiRes image sensors, up to 64 GB internal storage and a dual image of maximum 2 megapixels make the D16 DualDome an efficient security solution: You can secure two different areas with just one camera, for example. All without vulnerable mechanical components!

D16 DualDome SECURE Core with 6MPix Sensors

• Micro Processor: Dual Core
• Image Sensors (2 x): 1/1.8 CMOS, 6MP (3072 x 2048), Progessive Scan, color or B/W
• Max. Image Size: 12 MP (2 x 6MP, 6144 x 2048 pixels)
• Max. Frame Rate (MxPEG): 42@HD, 34@FullHD (1920 x 1080), 12@6MP, 6@2x 6MP
• H.264 Hardware Codec: Yes, bandwidth adjustment possible; output format max. QXGA
• ONVIF Support: Yes, full Profil S support with future software update
• Multicast-Stream via RTSP: Possible with H.264, MxPEG and MJPEG
• Multi-Streaming: Yes
• Power supply: PoE, power supply typ. 5 watts
• Mini USB Interface: Yes
• Receive/Send MxMessages: Yes

MOBOTIX 6MP Moonlight Sensor Technology Highlights

• The most light-sensitive MOBOTIX sensor lens technology ever
• Very low illumination requirements for day sensor module: 0.1 lux at 1/60 s, 0.005 lux at 1/1 s
• Very low illumination requirements for night sensor module: 0.02 lux at 1/60 s, 0.001 lux at 1/1 s
• Up to 100 times higher light sensitivity compared to previous 1- and 3MP sensor technology
• Expanded day sensor module range of applications
• Shorter exposure times mean reduced motion blurring
• High-quality premium lenses and optimized, balanced image quality with crisp detail right up to the image borders
• Maximum image size: Now 6 megapixels for each sensor module in special format 3:2 (3072 × 2048 pixels)

Maak uw lenskeuze in het onderstaande tabel

Deze module zijn zowel geschikt voor D15- als ook voor D16-Core
