Beschrijving Sony SNC-DS60

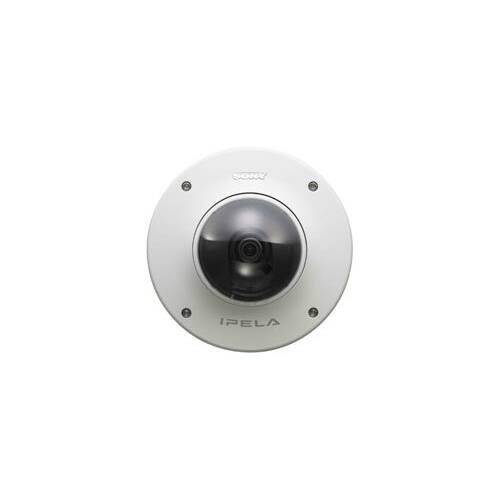

De SNC-DS60 is een netwerk mini-dome camera die een 1/4-type progressive scan CCD met ExwavePRO technologie bevat.
Dit product wordt geleverd met een volledig Prime Support pakket. dDeze zorgt voor snelle en probleeemloze reparaties, biedt een hulplijn voor deskundig technisch advies en een gratis leencamera terwijl de uwe wordt gerepareerd.
Camera
|
Image device |
1/4-type Progressive Scan CCD with ExwavePRO Technology |
|
Number of total pixels |
Approx. 350,000 |
|
Number of effective pixels (H x V) |
Approx. 330,000 (659 x 494) |
|
Electronic shutter |
1 to 1/10,000 s |
|
Automatic gain control (AGC) |
On/Off (0 dB to +36 dB) |
|
Exposure control |
Auto, Backlight compensation, Gamma settings |
|
White balance modes |
ATW, ATW Pro |
|
Lens type |
Vari-focal lens |
|
Zoom ratio |
3.6x optical zoom (2x digital zoom) |
|
Horizontal viewing angle |
73 to 20° |
|
Focal length |
f=2.8 to 10.0 mm |
|
F-number |
F1.3 (wide), F3.0 (tele) |
|
Minimum object distance |
300 mm |
|
Image size (H x V) |
JPEG: 768 x 576, 640 x 480, 384 x 288, 320 x 240 |
|
Maximum frame rate |
30 fps (640 x 480) |
Audio
|
Audio compression |
G.711/G.726 (40, 32, 24, 16 Kb/s) |
Network
|
Protocols |
TCP/IP, HTTP, ARP, ICMP, FTP, SMTP, DHCP, SNMP, DNS, NTP, RTP/RTCP, UDP |
|
Number of clients |
10 |
|
Authentication |
IEEE802.1X |
Interface
|
Ethernet |
10Base-T/100Base-TX (RJ-45) |
|
Analogue video output |
BNC x1, 1.0 Vp-p, 75 ohms, RCA x 1 |
|
I/O port |
Sensor in x 1, Alarm out x 2 |
|
External microphone input/Line input |
Mini-jack x1 (Mic in: monaural, 2.2 k ohms, DC 2.5 V plug-in power, Line in: monaural) |
|
Audio line output |
Mini-jack (monaural), max output level: 1 Vrms |
Analogue video output
|
Horizontal resolution |
400 TV lines |
|
S/N ratio |
more than 50 dB |
|
Minimum illumination |
Color: 0.3 lx (50IRE, F1.3, AGC 36dB) |
General
|
Mass |
approx. 1.4 kg (3 lb 1 oz) |
|
Dimensions (W x H) |
approx. 166 x 119 mm (6 5/8 x 4 3/4 inches) |
|
Power requirements |
PoE (IEEE-802.3af)/AC 24 V/DC 12 V |
|
Power consumption |
15 W max. |
|
Operating temperature |
-30 to 50 °C (-22 to 122 °F) |
|
Storage temperature |
-20 to 60 °C (-4 to 140 °F) |
System requirements
|
Operating system |
Microsoft Windows VISTA or Microsoft Windows XP |
|
Processor |
Intel Pentium IV, 2.4 GHz or higher, Intel Core2 Duo, 1.8 GHz or higher |
|
Memory |
RAM: 1 GB or more |
|
Web browser |
Microsoft Internet Explorer Ver. 7.0/6.0 |
Supplied Accessories
|
Wire rope |
|
M4 shoulder screw |
|
Audio cable |
|
I/O cable |
|
LAN cable |
|
BNC cable |
|
Power input cable |
|
CD-ROM (User guide, IP setup program, Audio Upload Tool, Privacy Masking Tool, Video Player, Custom Homepage Installer) |
|
Installation manual |
|
Bracket |
|
Template |
|
Torx wrench |
|
M4 screws |
Specificaties
| Model number | SNC-DS60 |
| Merk | Sony |
| Categorie |
IP Camera's
|
