Bosch MHW-WPD6R1-UK

desktop suitable for running the security systems

software applications offered by Bosch. Please refer to

the respective application data sheets to get detailed

information.

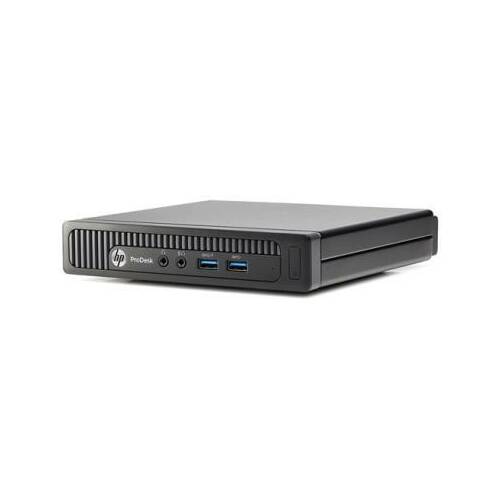

Designed as mini desktop form factor it nevertheless

provides performance scalability and expandability:

? Processor: Intel Core i5-4590T processor up to

3.0 GHz max. turbo frequency (2.0 GHz base

frequency), 6 MB cache, 4 cores, 4 threads Intel

HD Graphics 4600; supports DDR3 memory up to

1600 MT/s data rate

? Expansion slots: 2 x M.2 (1 x M.2 2230 for optional

wireless NIC; 1 x M.2 2280 for storage drives)

? Port and connectors: 4 x USB 3.0; 2 x USB 2.0; 1 x

RJ-45; 1 x audio line out; 1 x headphone; 1 x

microphone; 1 x VGA; 2 x DisplayPort

Intel Microarchitecture offers the latest in processor

innovation, including:

? PC chassis and all internal components and modules

are manufactured with low halogen content

? HP developed and engineered UEFI BIOS supporting

security, manageability and software image stability

? Intel Q85 chipset supporting Intel 4th generation

Core processors, featuring integrated Intel

HD Graphics and Intel

Standard Manageability Technology

? Intel Ethernet Connection I217L GbE LOM integrated

network connection

? DDR3 Synchronous Dynamic Random Access Memory

(SDRAM)

? Multi-independent monitor support via VGA and dual

digital DisplayPort video interfaces with multi-stream

? Standard efficiency energy saving power supply

options ENERGY STAR qualified
