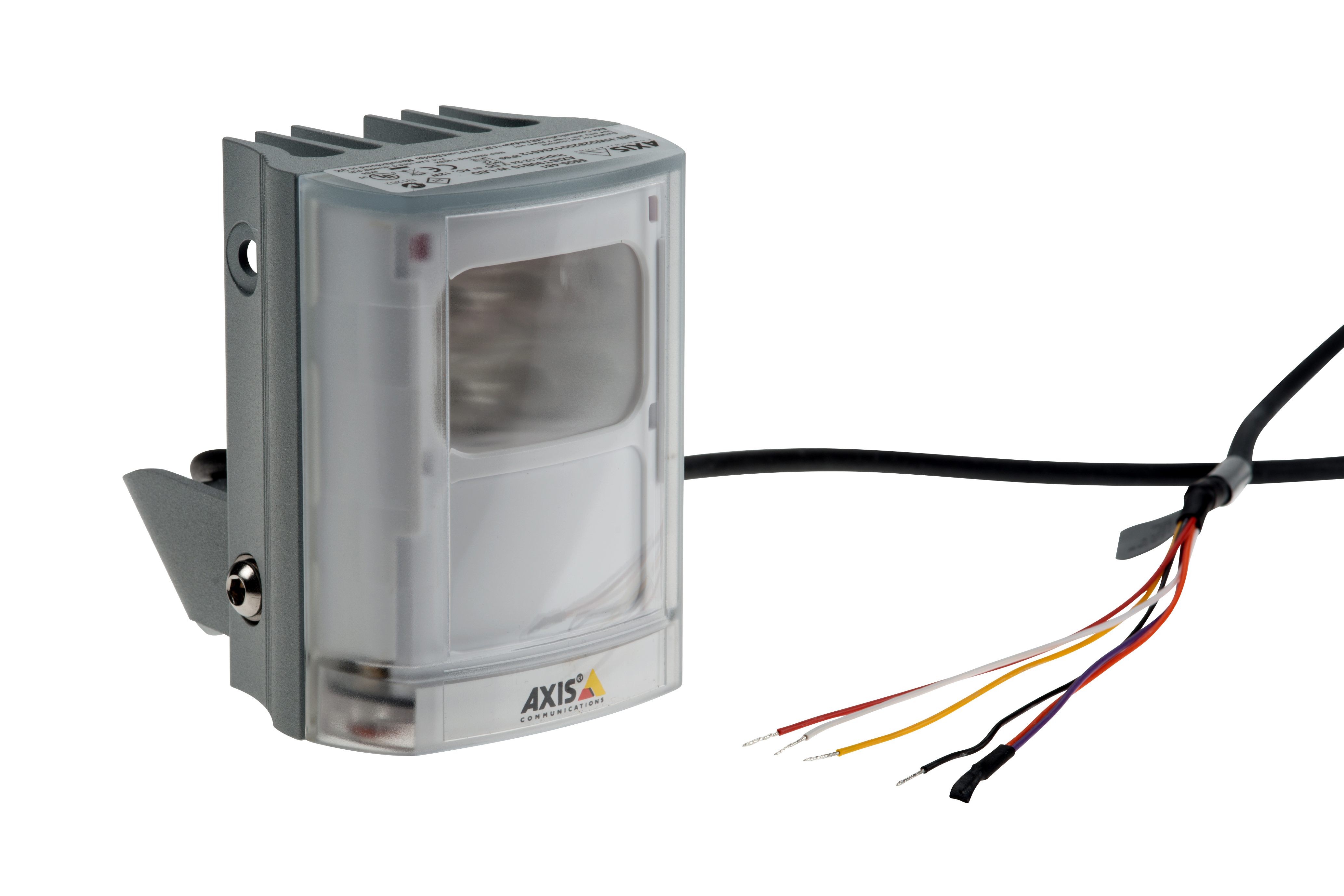

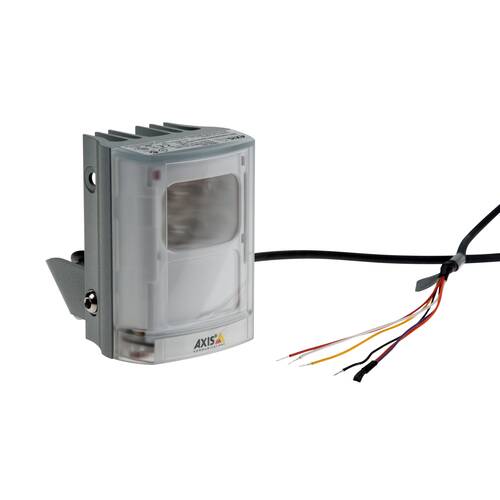

AXIS T90B15 W-led

AXIS Artikelnr 5505-481
END-OF-LIFE

{{ fullProductName }}

End-of-life: Product mogelijk niet meer leverbaar

Axis T90B15 LED-lamp

Wilt u persoonlijk advies over mogelijke alternatieven?

Stopgezet
Bestel nu
+ Offerte

Beschrijving AXIS T90B15 W-led

  • White LED illuminator for Axis network cameras
  • Included interchangeable diverging lenses providing 10°, 35°, 60° & 80° beam angles
  • Beam distance ranges 10 m to 50 m (33 ft to 164 ft)
  • Made of IK09 impact-resistant aluminium and polycarbonate.
  • IP66 and NEMA 4X ratings
  • Operating temperature -50 °C to 50°C (-58 °F to 122 °F)
  • Highly flexible, interchangeable lenses
  • White LED models
  • Fine tuning from ground level with remote control
  • Evenly illuminated scene

T90B W-led

Flexibility to meet cameras field of view

The unique beam pattern system in AXIS T90B Illuminators uses the latest development in interchangeable holographic optics and allows users to precisely match the angle of illumination to the required field of view. The included diverging lenses offer 35º, 60º and 80º beam angle and an optional 120º diverging lens is available for all AXIS T90B Illuminators model.

Evenly illuminated scene

The diverging lenses use hot-spot reduction technology to produce images with a highly diffused elliptical beam shape to deliver light directly to where it is most needed, allowing greater illumination distances, reducing light and energy wastage and preventing the overexposure of foreground objects.

Fine tuning from ground level

An optional AXIS T90B Remote Control provides the ability to set-up the illuminator quickly, safely and from ground level.

Applications

  • White-light surveillance - 24 hours/day: where light conditions are less than optimal.
  • Discreet surveillance: where the use of artificial light is restricted.
  • Indoor and outdoor: IP66- and NEMA 4X-rated casings for indoor and outdoor use.

Downloads

Datasheet Download
Gebruikers handleiding Download
Installatie handleiding Download
Catalogue Download
afmetingen Download

Specificaties

Product
Model number 5505-481
EAN code 7331021044340
Merk AXIS
Categorie
Overige Producten
