Beschrijving AXIS T91A50

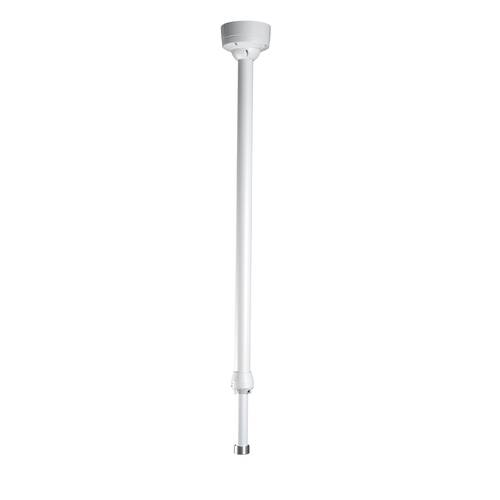

Axis T91A50 telescopic ceiling mount indoor
  • Indoor telescopic ceiling mount.
  • Expands between 1 m (39") and 2 m (79").
  • Features a swivel action to prevent breaking if hit by forklifs or high vehicles.
  • Can be mounted on a sloped ceiling.
  • Accessory extension pipes (Not included) for a maximum lengh of 5 m (197").
  • Compatible with all Axis pendant kits featuring a 1,5 NPS thread and the AXIS T91A05 Camera holder for fixed cameras.

Ease of installation
Thanks to its telescopic design, AXIS T91A50 is easy to expand or collapse depending on the desired length. It is suitable in those environments where camera may need to hang below lights and ventilation tubes, such as in warehouses, do-it-yourself or home-improvement stores. AXIS T91A50 can expand from 1 meter (39 in) up to 2 meters (79 in) and if a longer pipe is needed, two optional accessories are available, AXIS T91A52 Extension Pipe 30cm (12 in) and AXIS T91A52 Extension Pipe 100cm (39 in). The recommended maximum length for AXIS T91A50 is 5 meter (16.4 ft). For indoor camera installations in low ceilings, where the camera needs to be installed as close as possible to the ceiling, AXIS T90A51 Ceiling Mount is the ideal option. With their 1.5 in NPS thread, AXIS T91A50 and AXIS T91A51 mounts are compatible with all Axis cameras, housings and mounts supporting the same type of thread.

Robust and safe installation
The indoor mounts, AXIS T91A50/T91A51 feature a swivel action that allows the mount to swing if hit, e.g. by forklifts or tall vehicles. If a sturdier installation is required, AXIS T91A50 Telescopic Ceiling Mount can also be secured with wires to the ceiling. Furthermore, the cable is routed inside the telescopic pipe for a clean look and safe cabling. The ceiling mounts can also be installed on a sloped ceiling, ensuring that the camera is still hanging straight.


Datasheet Download pdf
Gebruikers handleiding Download pdf
Installatie handleiding Download pdf


Model number AX5504-501
EAN code 7331021006720
